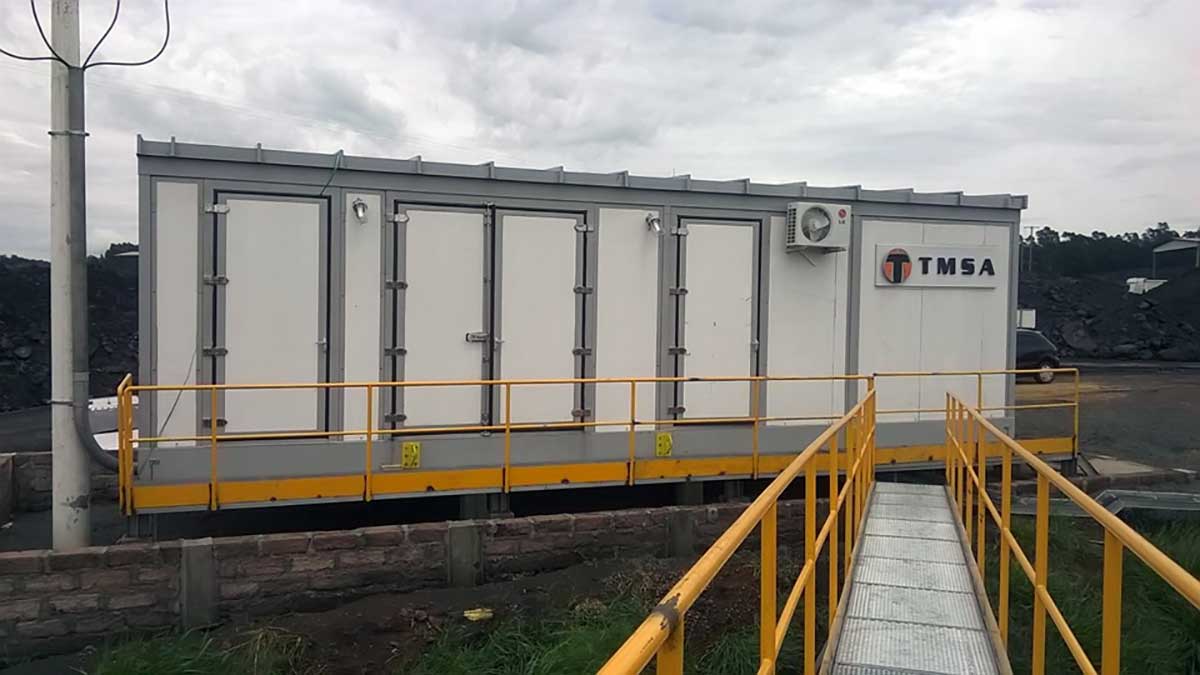

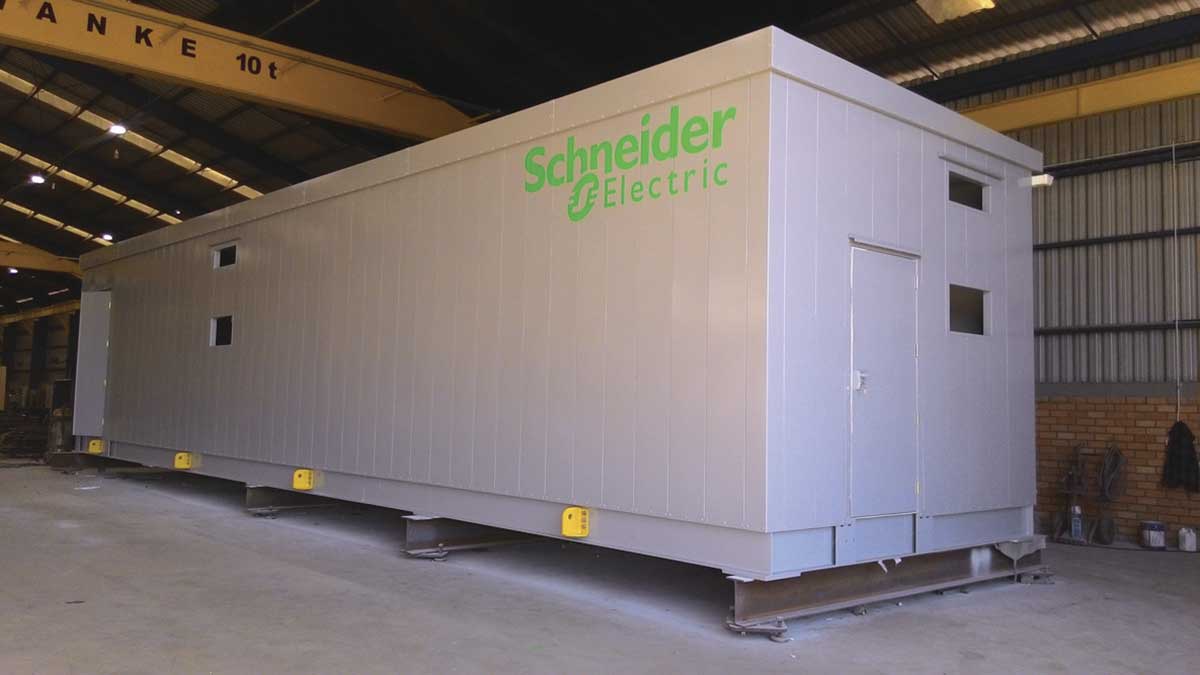

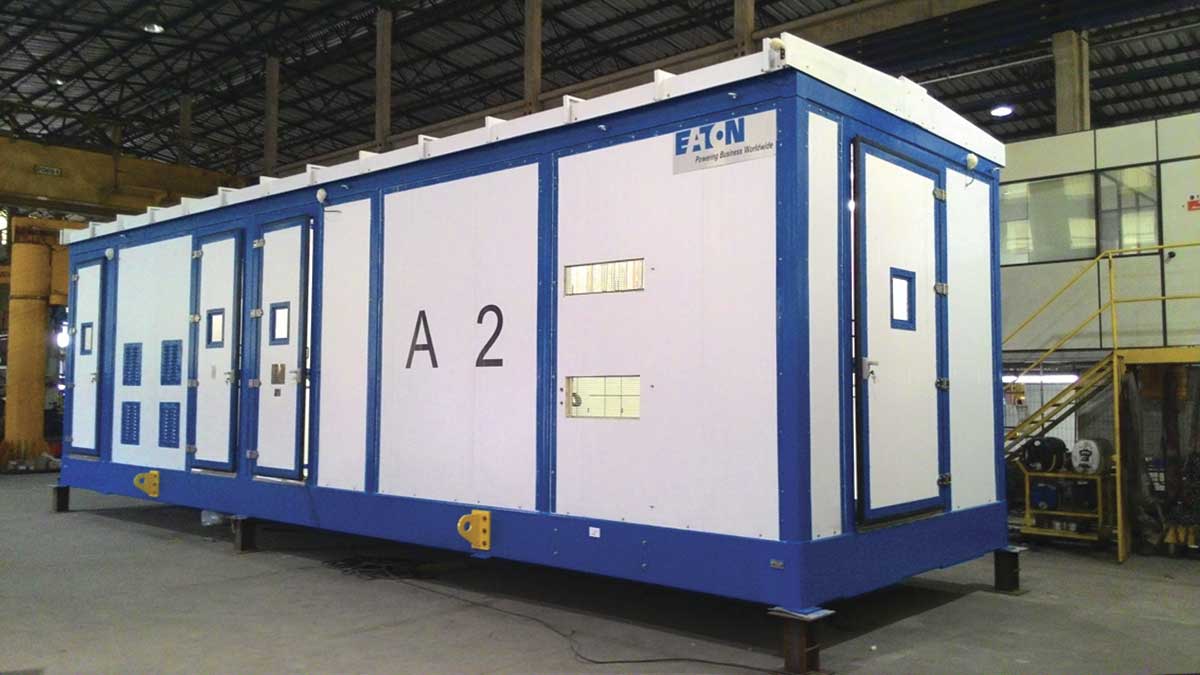

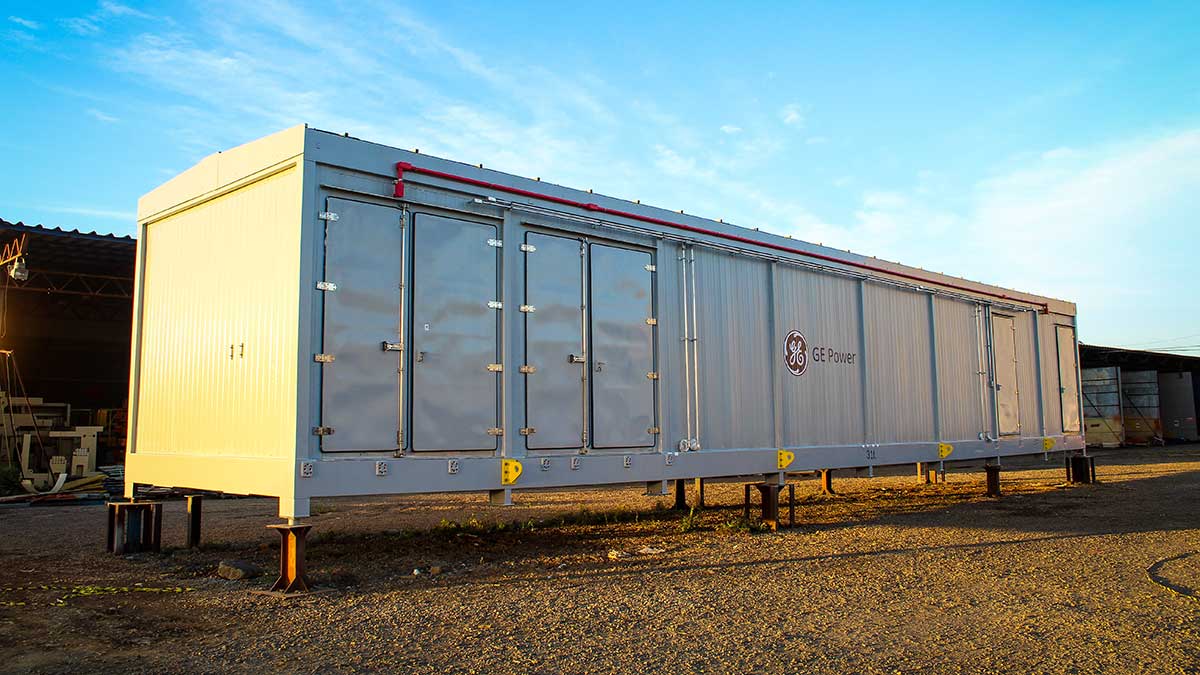

E-houses
TMSA patented solution. Biggest free interspace: the evolution in modular structures for electric control systems.
TMSA E-houses are produced based on the most current construction technologies and safety standards, considering operational factors, ease of maintenance, space optimization, access adequacy, acclimatization systems and several features according to each client specification.
Better economy and agility in the substation implementation, energy distribution systems, supervision systems, among others.
It replaces civil works for allocablestructures of high quality, safety, and durability.
TMSA eletrocenters are ideal for installation of electrical equipment/ components, distribution, control, and monitoring.
HIGHLIGHTS
- Each TMSA Electrocenter is produced from the specific needs of each client.
- All subsystems are delivered to the work in a single product assembled, tested and ready for operation.
- A Electrocenter may be composed by a variety of different modular structures, allowing future extensions.
- With specific reforms and fixations for lifting, all set may be easily relocated, allowing its use in different applications.
Subsystems available
- Acclimatization and pressurization system.
- Protection and fire fighting system - SPCI.
- Passive protection system.
- Internal CFTV system and access control.
- Normal and emergency lighting system.
- Plug system.
- Linear temperature detection system.
- SPDA and grounding system.
- 125 Vdc recharger/rectifier system.
- No Break/UPS.
- Connectors for cable input and output - MT and BT.
- TI, TA, and Telecom room.
| CIVIL SUBSTATION | E-HOUSE |
|---|---|
| Depends on weather conditions | Does not depend on weather conditions |
| High cost to modify the project | Low cost to modify the project |
| Warehouse on site | Warehouse at the factory = Cost reduction |
| On-site workforce | Workforce at the factory = Cost reduction |
| Risks of accidents at the installation site | Reduced risks of accidents at the installation site |
| Greater investment of time and funds with no mobility | Time savings, lower investment and easy relocation of the whole assembly |
- Each TMSA Electrocenter is produced from the specific needs of each client.
- All subsystems are delivered to the work in a single product assembled, tested and ready for operation.
- A Electrocenter may be composed by a variety of different modular structures, allowing future extensions.
- With specific reforms and fixations for lifting, all set may be easily relocated, allowing its use in different applications.
Subsystems available
- Acclimatization and pressurization system.
- Protection and fire fighting system - SPCI.
- Passive protection system.
- Internal CFTV system and access control.
- Normal and emergency lighting system.
- Plug system.
- Linear temperature detection system.
- SPDA and grounding system.
- 125 Vdc recharger/rectifier system.
- No Break/UPS.
- Connectors for cable input and output - MT and BT.
- TI, TA, and Telecom room.
| CIVIL SUBSTATION | E-HOUSE |
|---|---|
| Depends on weather conditions | Does not depend on weather conditions |
| High cost to modify the project | Low cost to modify the project |
| Warehouse on site | Warehouse at the factory = Cost reduction |
| On-site workforce | Workforce at the factory = Cost reduction |
| Risks of accidents at the installation site | Reduced risks of accidents at the installation site |
| Greater investment of time and funds with no mobility | Time savings, lower investment and easy relocation of the whole assembly |
TMSA solutions are designed specifically for each customer. Interested in this solution?
TMSA solutions are designed specifically for each customer. Interested in this solution?
